Element
E-Circuit Gen 3

Name: Element E-Circuit Gen 3
Brand: Element

A 29-inch hardtail e-bike built around a 500W rear hub motor, 48V 17.5Ah battery, hydraulic braking, and familiar Shimano controls.

Get launch updates Call Calgary

Arrival timing and Calgary retail price will be shared when confirmed.

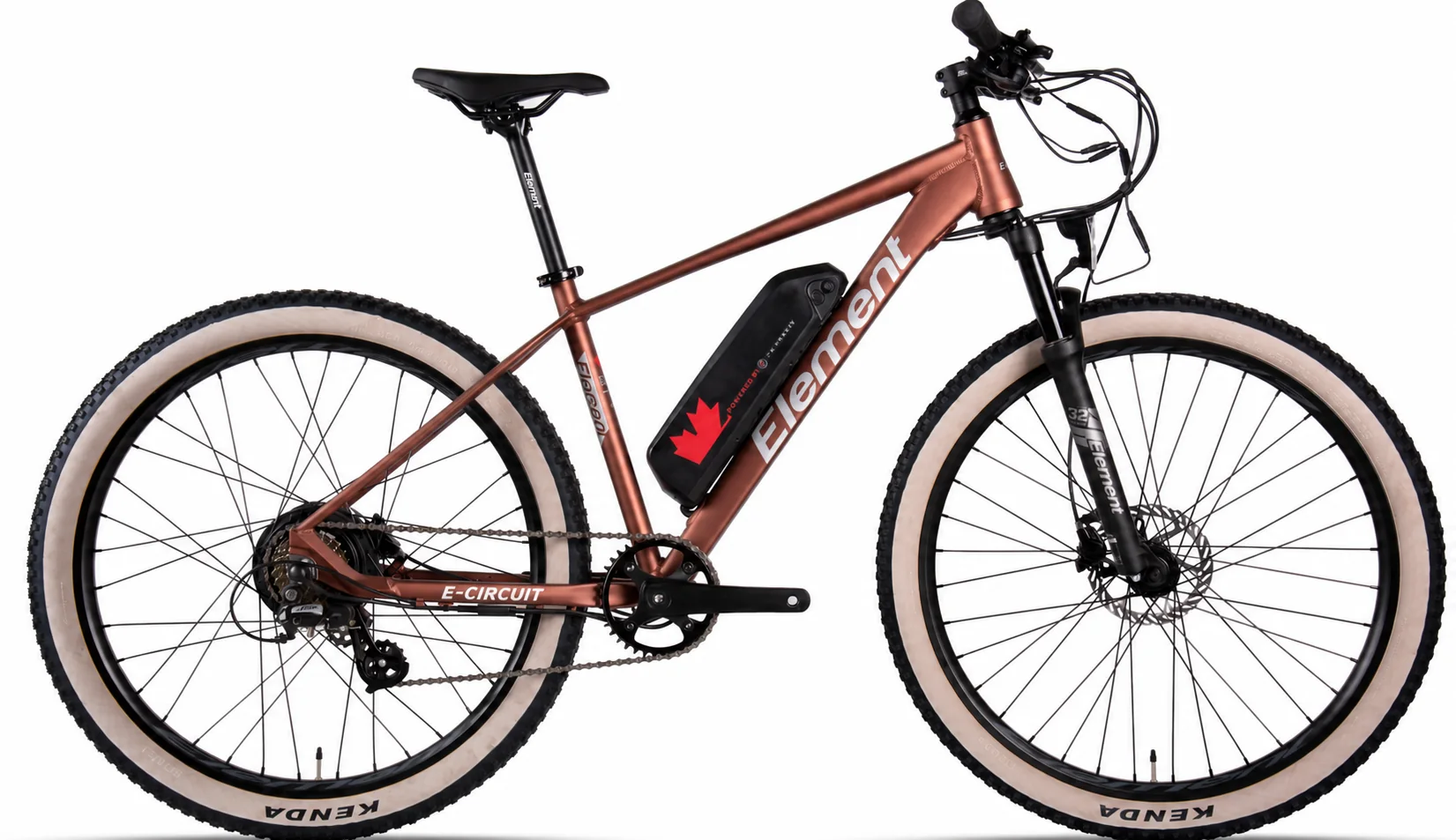

Copper Element E-Circuit factory colour reference bike — Factory colour reference. The production quotation specifies a 29-inch frame, wheels, and tires; final Canadian details may change.

500WAnanda rear hub motor

48V 17.5AhLG-cell battery

29 × 2.25Kenda tires

7 speedShimano shifting

Real component photos

See the quoted parts.

These are real manufacturer images for the quoted component families. The production bike will be checked against the quotation when it arrives.

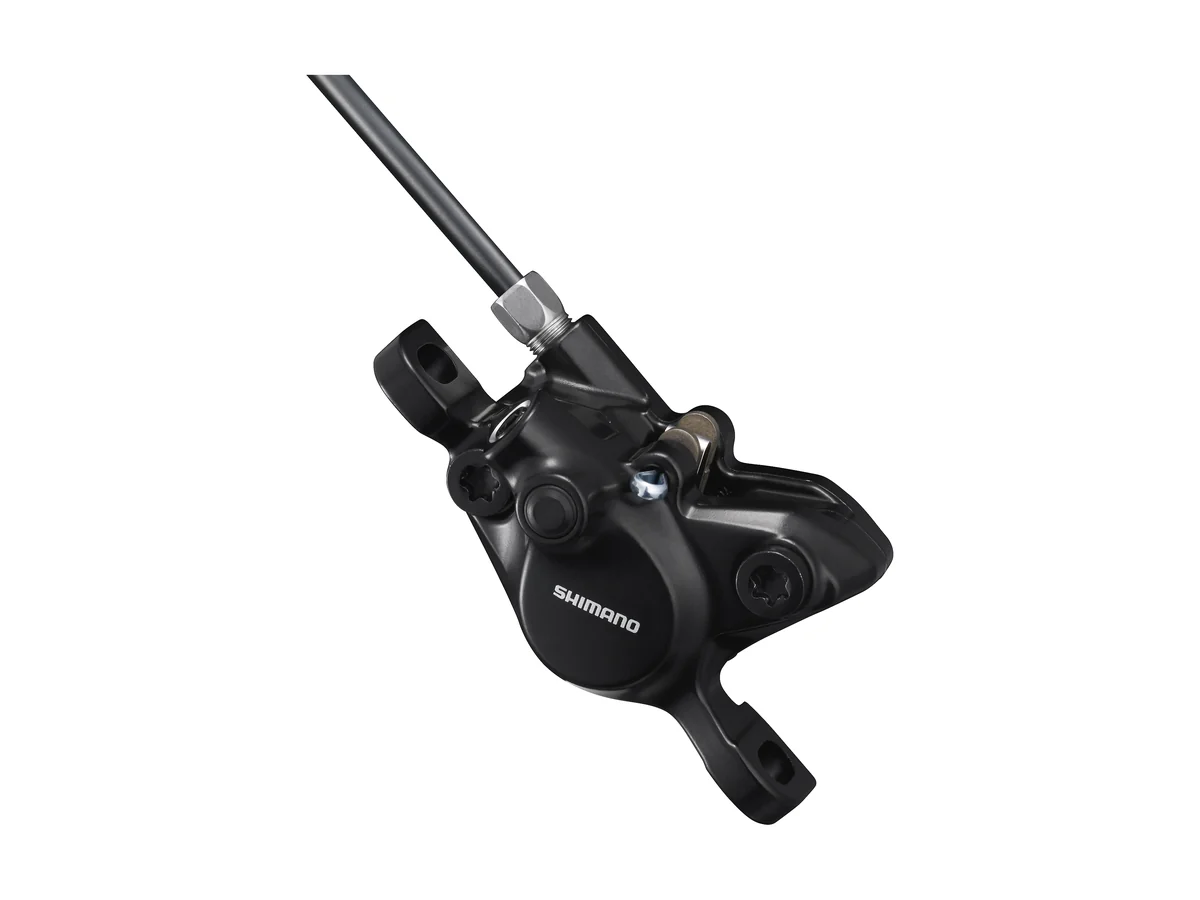

Shimano BR-MT200 hydraulic brake caliper manufacturer photo

Brakes

Shimano MT200 hydraulic discs

Hydraulic front and rear braking with 160mm stainless rotors and motor cut-off integration.

Manufacturer photo: Shimano

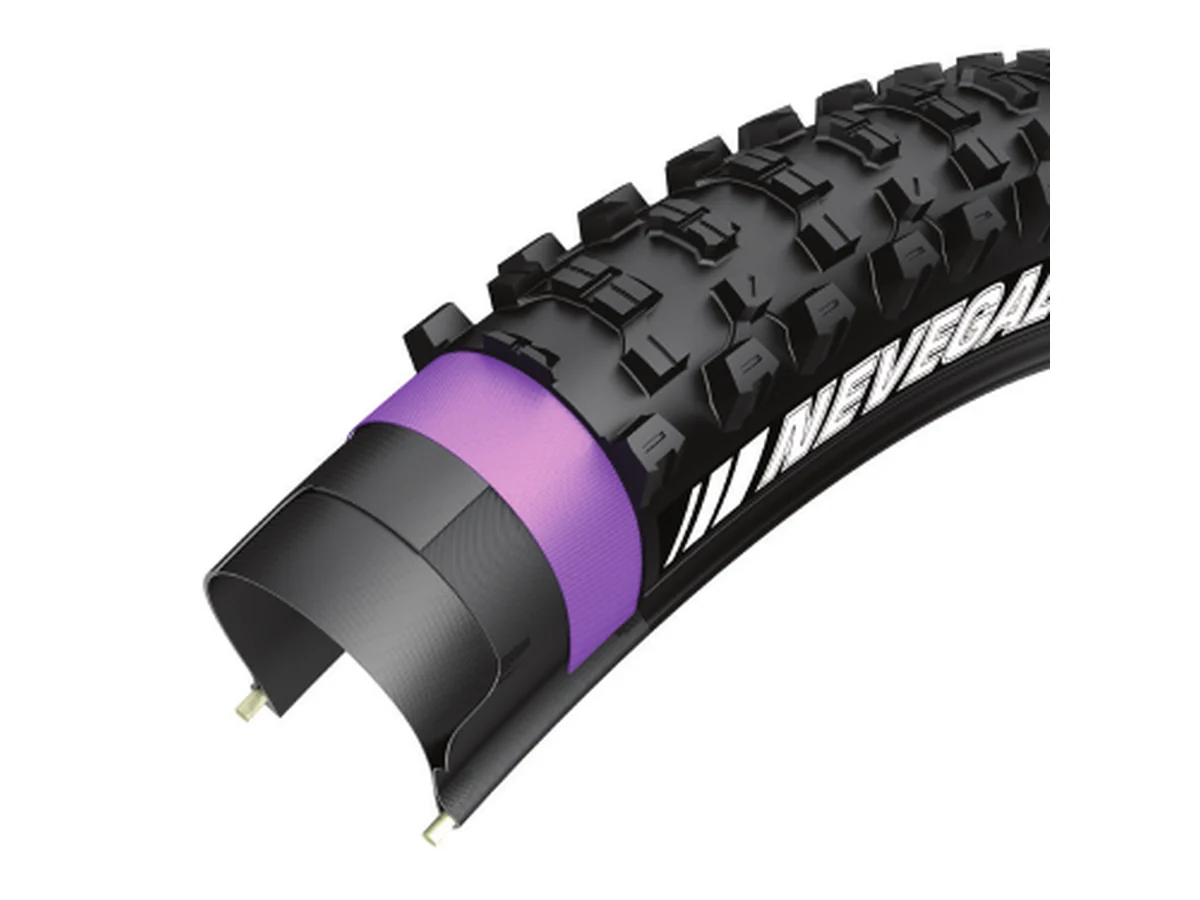

Kenda Nevegal K1010 tire construction manufacturer image

Tires

Kenda K1010, 29 × 2.25

Kenda's K1010 Nevegal construction is shown. The production quotation specifies the 29 × 2.25 configuration.

Manufacturer image: Kenda

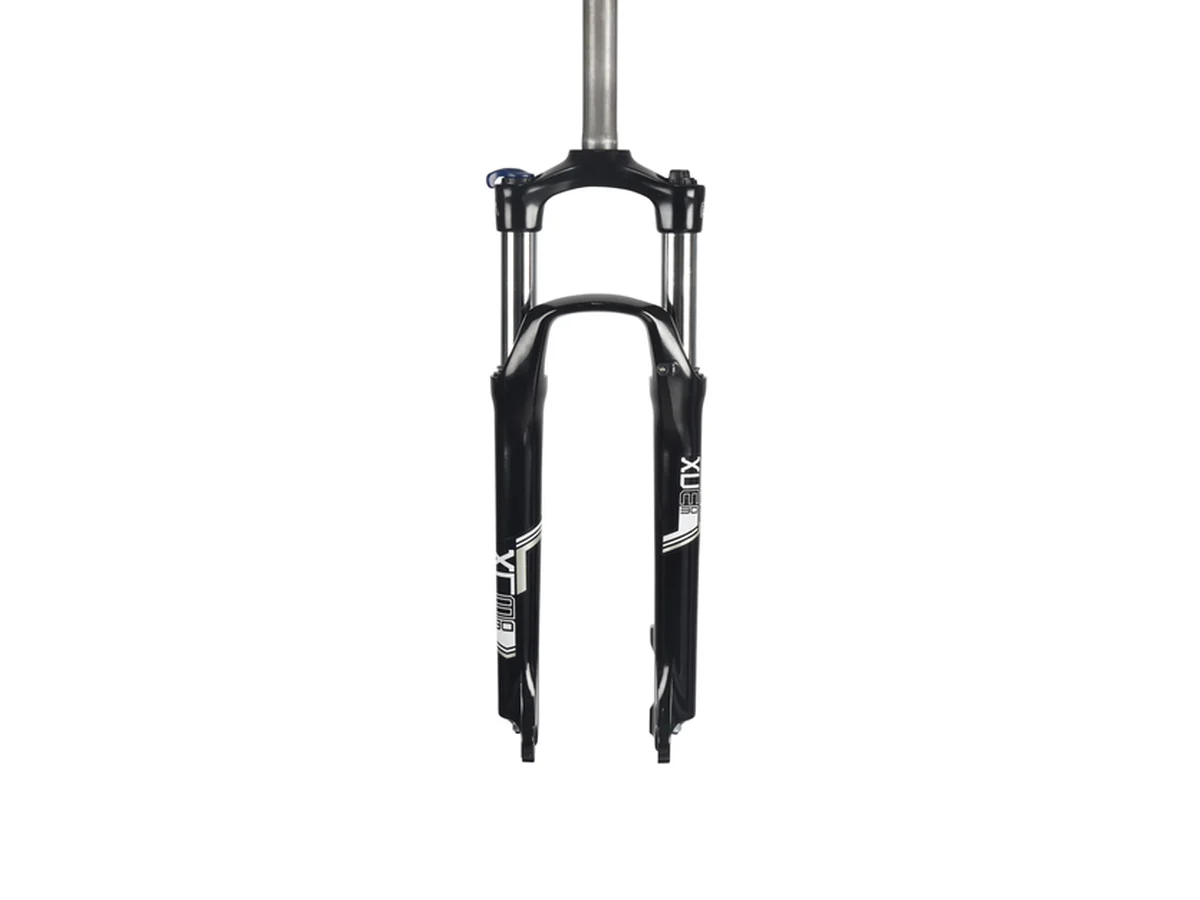

Suspension

Suntour XCM fork

The quotation calls for XCM hydraulic suspension, mechanical lockout, and quick-release 100mm hub spacing.

Manufacturer photo: SR Suntour

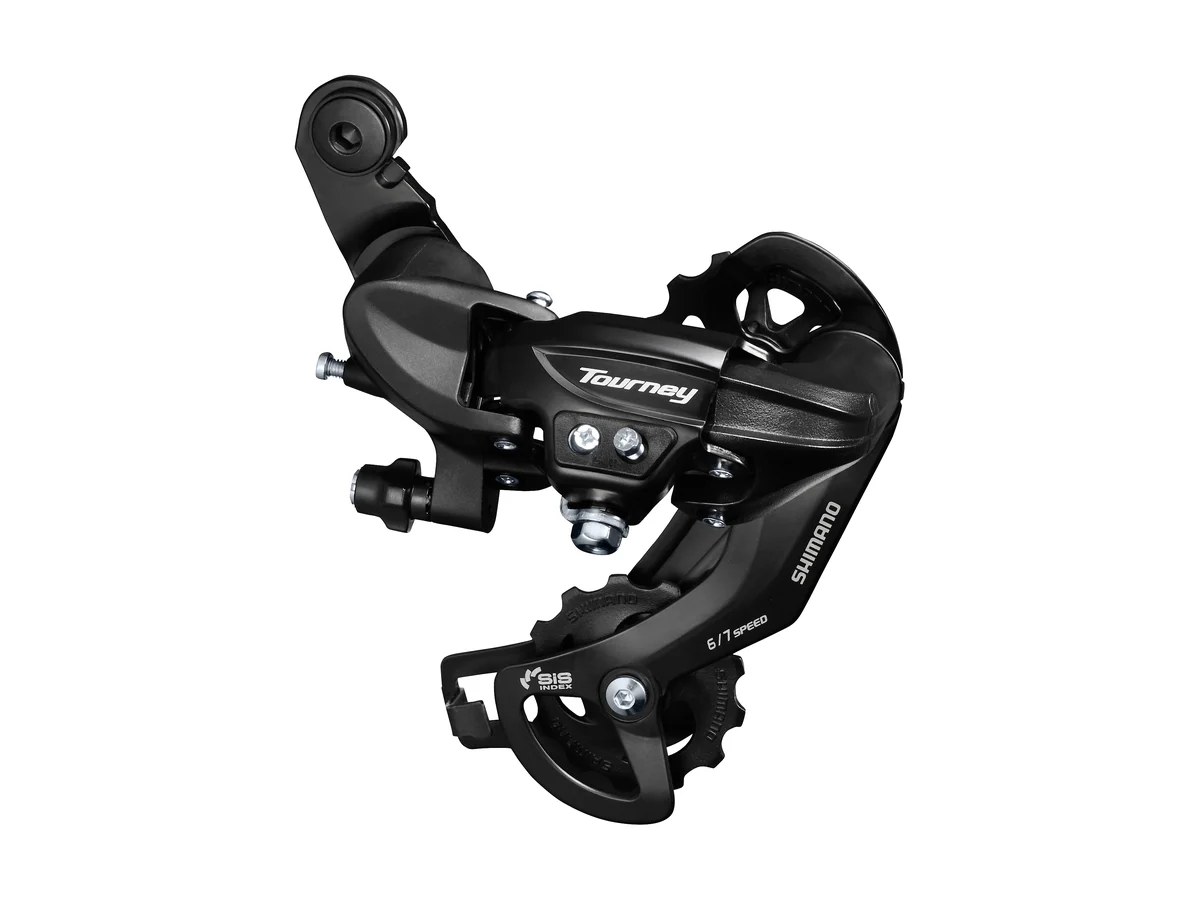

Shimano Tourney RD-TY300 rear derailleur manufacturer photo

Drivetrain

Shimano-controlled 7-speed

TY300 rear derailleur, SL-M315 shifter, HG200 12–28T cassette, KMC Z7 chain, and 38T crank.

Manufacturer photo: Shimano

Colour concepts

Three directions that suit the build.

These are visual concepts, not confirmed factory colours. They show how the E-Circuit could look in three additional finishes.

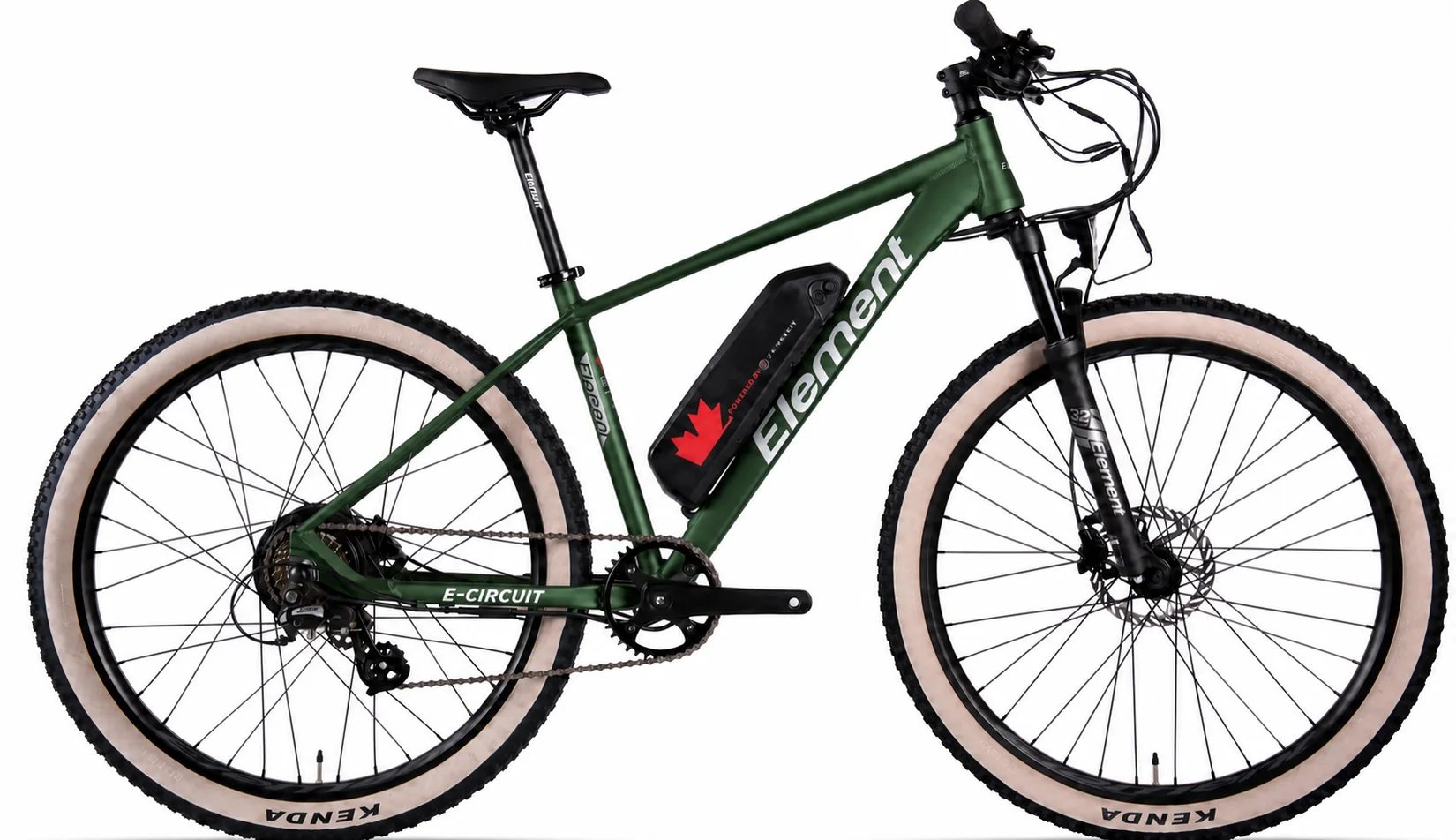

E-Circuit Gen 3 concept with an alpine green frame — **Alpine Green**Concept only

E-Circuit Gen 3 concept with a glacier blue frame — **Glacier Blue**Concept only

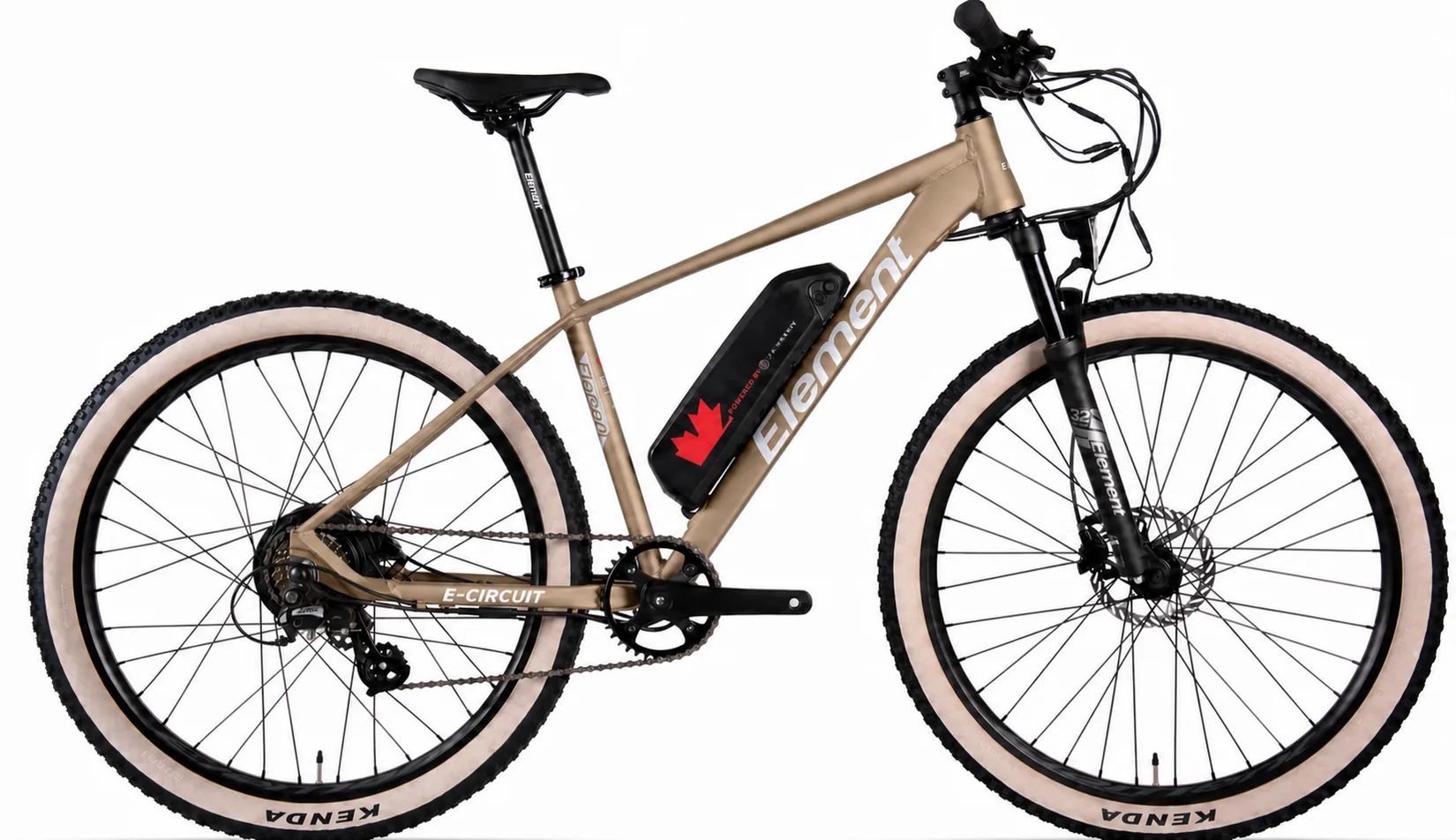

E-Circuit Gen 3 concept with a sandstone frame — **Sandstone**Concept only

Electric system

Power for longer city rides.

The quoted build pairs an Ananda rear hub motor with an LG-cell battery and a five-level display. The controller is configured for a 32km/h assisted limit.

Read the full specification ↓

Motor48V 500W Ananda 105C rear hub

Battery48V 17.5Ah LG-cell pack, quoted IPX6

DisplayDigital-2 with five assist levels

Charging48V 2A charger, 110–240V input

Production quotation · July 22, 2026

Full quoted specification.

These details come from the current factory quotation. Components may change before Canadian retail release.

Frame: 29-inch aluminum frame, 21-inch seat tube, 135mm rear spacing
Fork: Suntour XCM hydraulic suspension, mechanical lockout, quick release
Handlebar: UUR HB-105BT aluminum, 720mm, 9° sweep
Stem: UUR AS-261C aluminum, 60mm, 17°
Wheels: 29-inch double-wall aluminum rims, 36-hole hubs, 13G spokes
Tires: Kenda K1010, 29 × 2.25
Brakes: Shimano BR-MT200 hydraulic discs with 160mm rotors
Rear derailleur: Shimano TY300, 7-speed long cage
Shifter: Shimano SL-M315-7R, 7-speed
Cassette: Shimano HG200-7, 12–28T
Crank and chain: 38T narrow-wide ring, 170mm arms, KMC Z7 chain
Motor: Ananda 105C, 48V 500W rear hub, 250rpm
Battery: 48V 17.5Ah LG-cell lithium-ion pack in aluminum case
Controller: 48V 500W, 20A limit, configured to 32km/h
Display: Digital-2, five assist levels
Lighting: 6–48V front LED light
Charger: 48V 2A, 110–240V AC input
Finish shown: Copper frame with black components and light sidewall tires
